Insulated Ducts

The R-value you need depends on your climate zone and local energy code. In warm climates (IECC zones 1–3, including Houston, TX and the southern US), R4.2 or R6 insulated flex duct is typically sufficient. In cold climates (zones 4–8), R8 insulated duct is usually required by code, especially for ductwork in unconditioned attics or crawl spaces. R6 provides 40mm (1.6") of insulation, while R8 provides 80mm (3.1"). See our detailed comparison in the R6 vs R8 duct insulation guide.

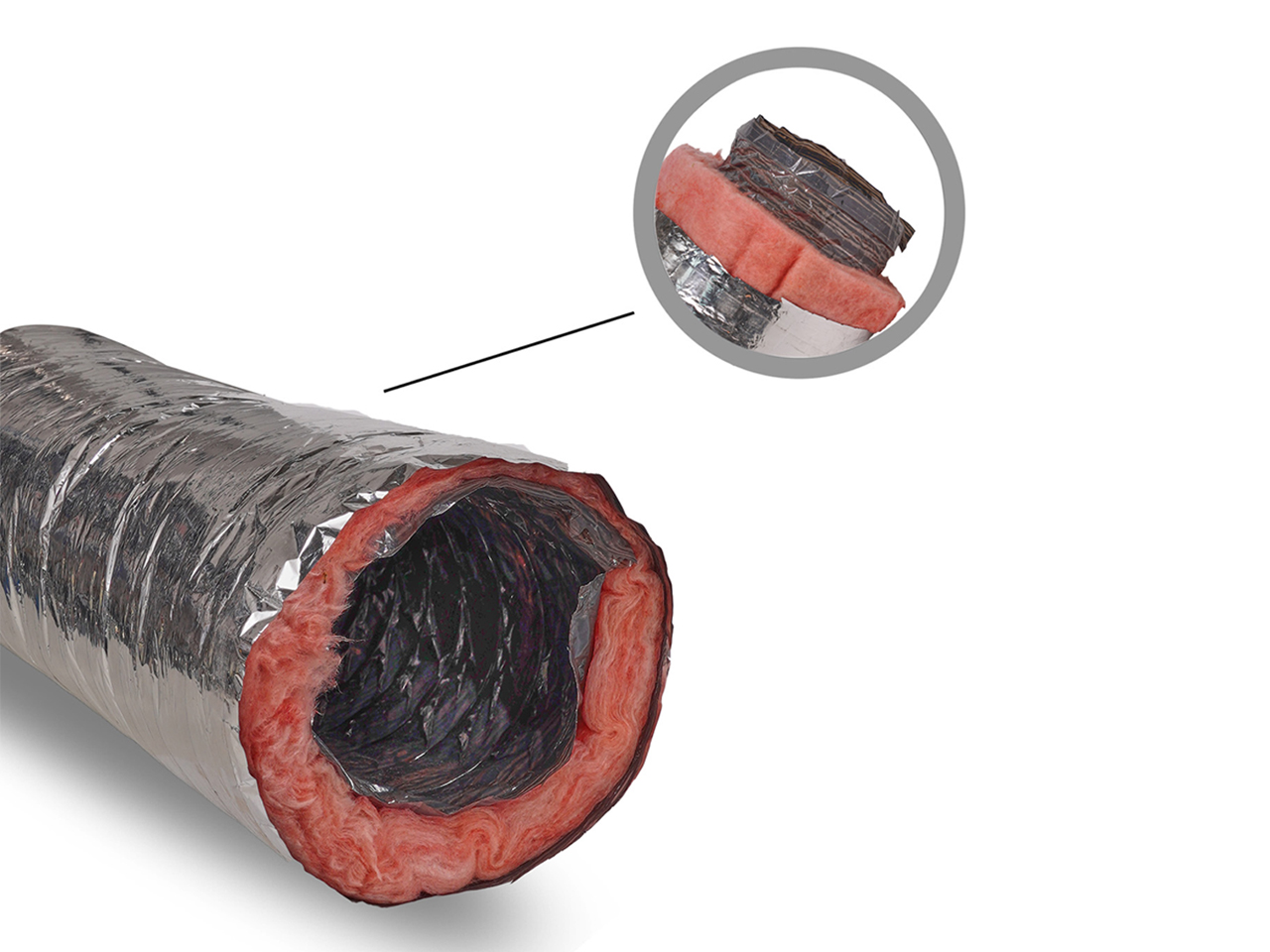

R8 insulated duct provides nearly double the thermal resistance of R6 (80mm vs 40mm insulation), reducing energy loss by up to 25% more. However, R8 duct has a larger outer diameter, which can be an issue in tight spaces. If your ductwork runs through conditioned spaces (inside walls, below insulated ceilings), R6 is usually adequate. For attics, crawl spaces, garages, or any unconditioned space, R8 is the better investment — the energy savings typically pay back the extra cost within 1–2 years. Our R6 vs R8 comparison guide breaks down the cost-benefit analysis.

Yes — properly installed insulated flex duct with an intact vapor barrier prevents condensation (sweating) on the duct exterior. Condensation occurs when warm, humid air contacts a cold duct surface. Insulation keeps the outer jacket temperature above the dew point. Our insulated ducts feature a metalized polyester vapor barrier that blocks moisture migration. For maximum condensation prevention in humid climates, use R6 or R8 insulated duct and seal all joints with UL-listed foil tape. Read more in our duct insulation guide.

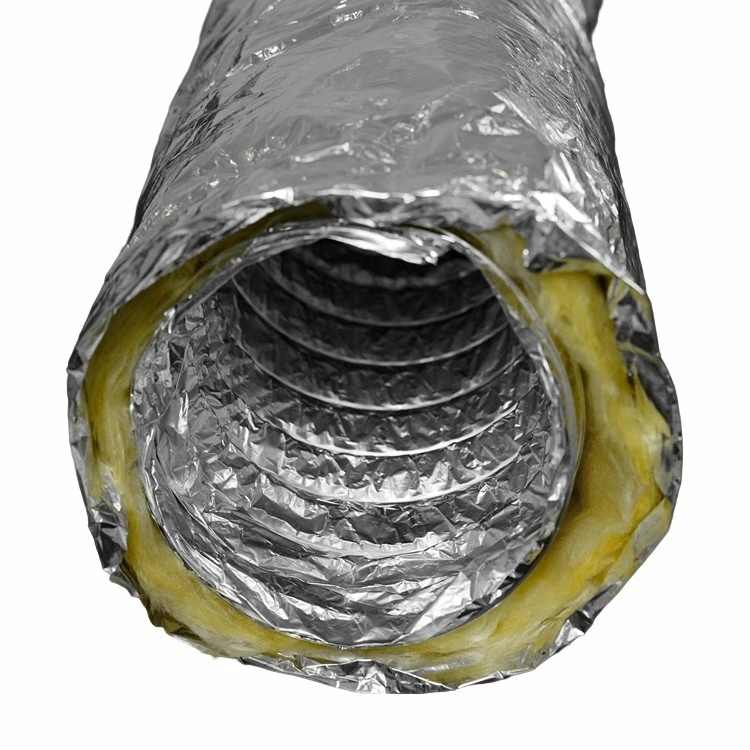

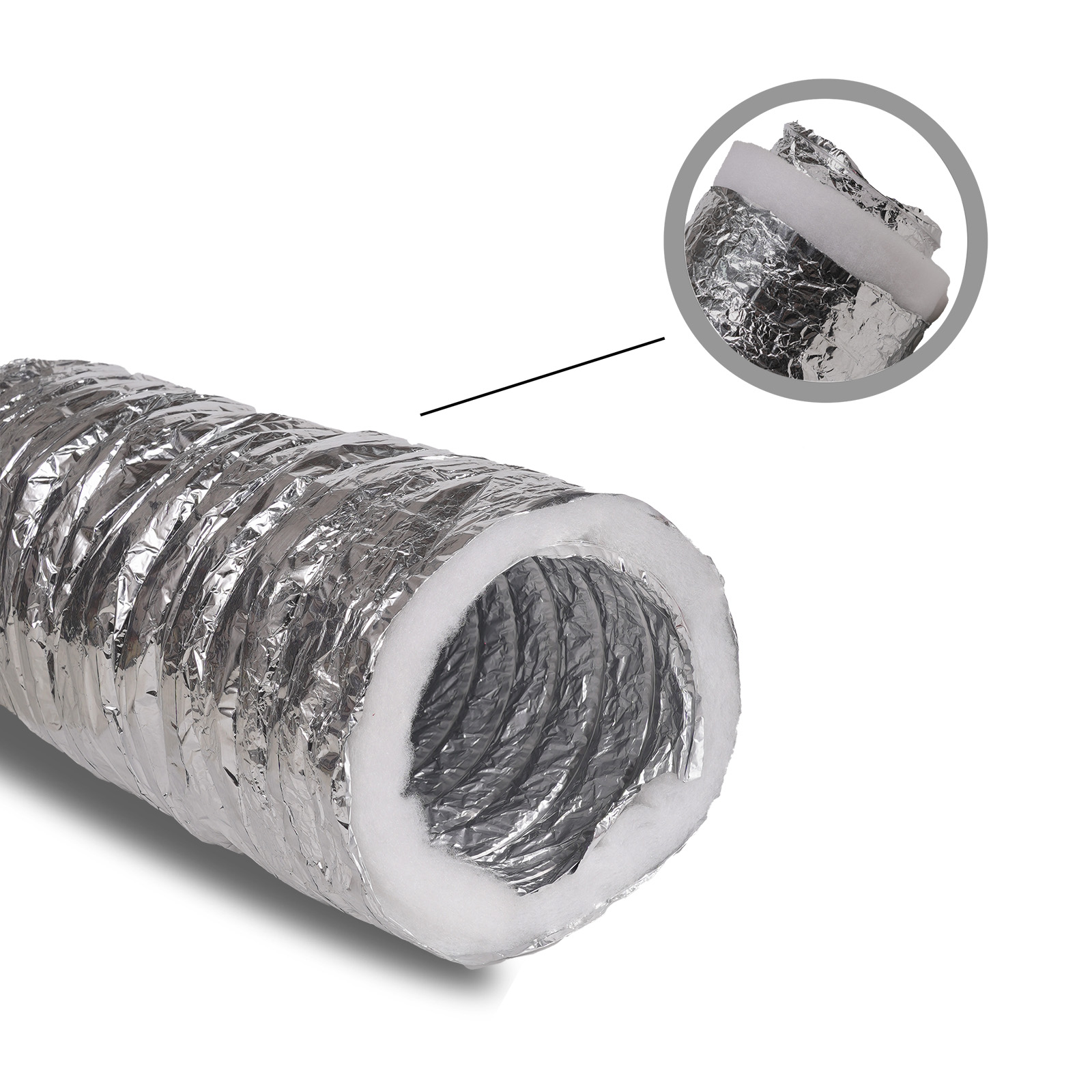

Fiberglass wool insulated duct (16 kg/m³ density) is the industry standard — it delivers excellent thermal and acoustic performance at a competitive cost. Polyester wool insulated duct (200 g/m²) is fiberglass-free, non-irritant, and non-allergenic, making it ideal for hospitals, schools, clean rooms, and any environment where airborne fiberglass particles are a concern. Both options are available with vapor barrier outer jackets. Thermal performance is comparable at the same thickness. Learn more about insulation materials in our duct liner vs wrap guide.

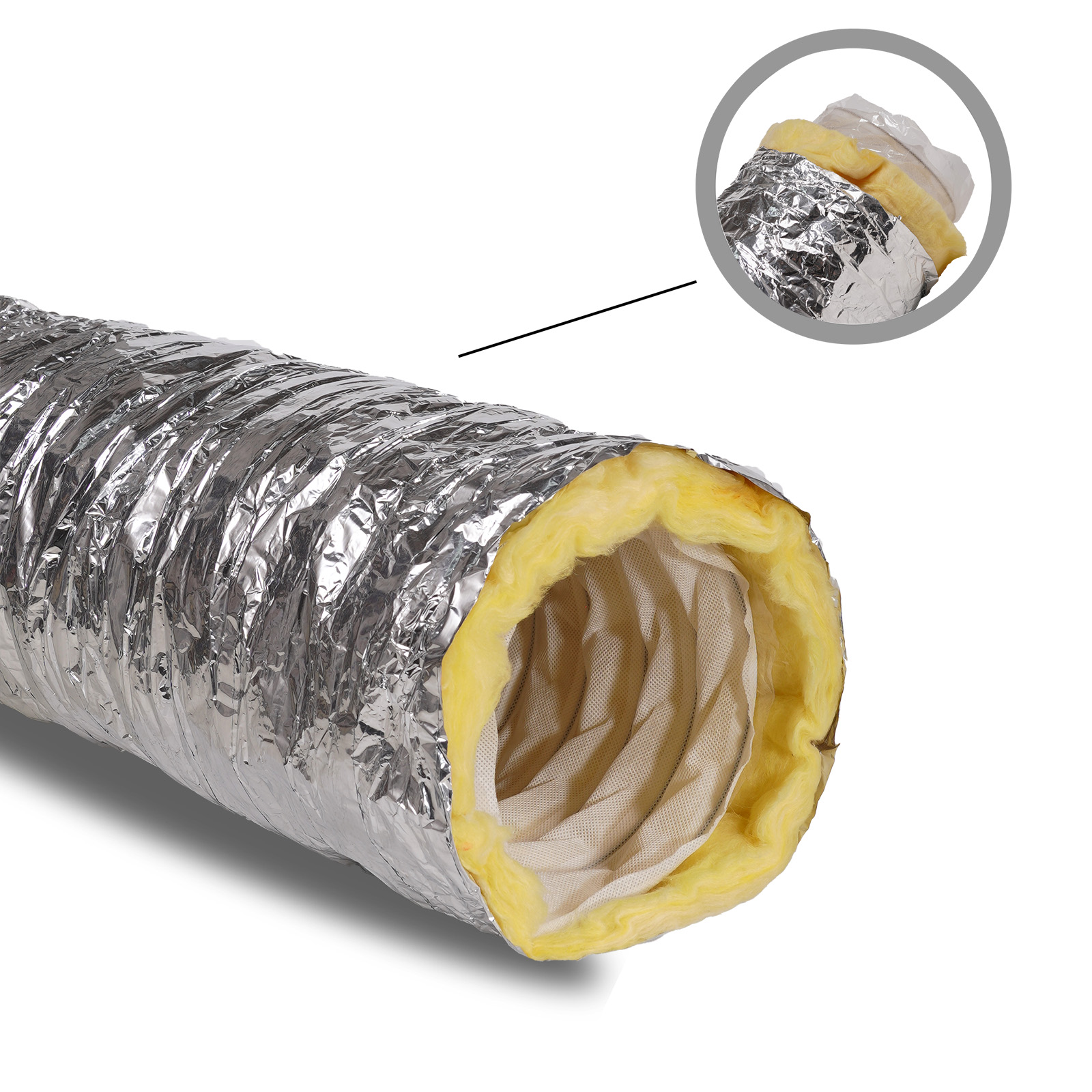

Standard insulated flex duct provides moderate noise reduction (5–10 dB) thanks to the fiberglass or polyester wool layer. For spaces where noise is critical — bedrooms, home offices, recording studios — our soundproof insulated duct with acoustic duct insulation and a non-woven fabric inner liner delivers up to 25 dB of noise reduction. The acoustic liner dampens turbulence noise at the air contact surface, while the insulation absorbs structure-borne sound. This is a far more effective solution than adding external duct wrap.
